NK300 HD Electric Kayak Motor

The NK HD Series represents the next generation of Newport’s flagship kayak motors. Built around a Heavy Duty durability standard, the NK180 HD and NK300 HD integrate reinforced steering, a redesigned retract system, and an upgraded HD communication connector as standard equipment. Designed specifically for kayak anglers, the HD Series delivers reliable brushless performance without compromise. This is a motor platform built for long days on the water, where confidence matters more than features on a spec sheet.

Features

• Fastest NK HD (3HP/1300W)

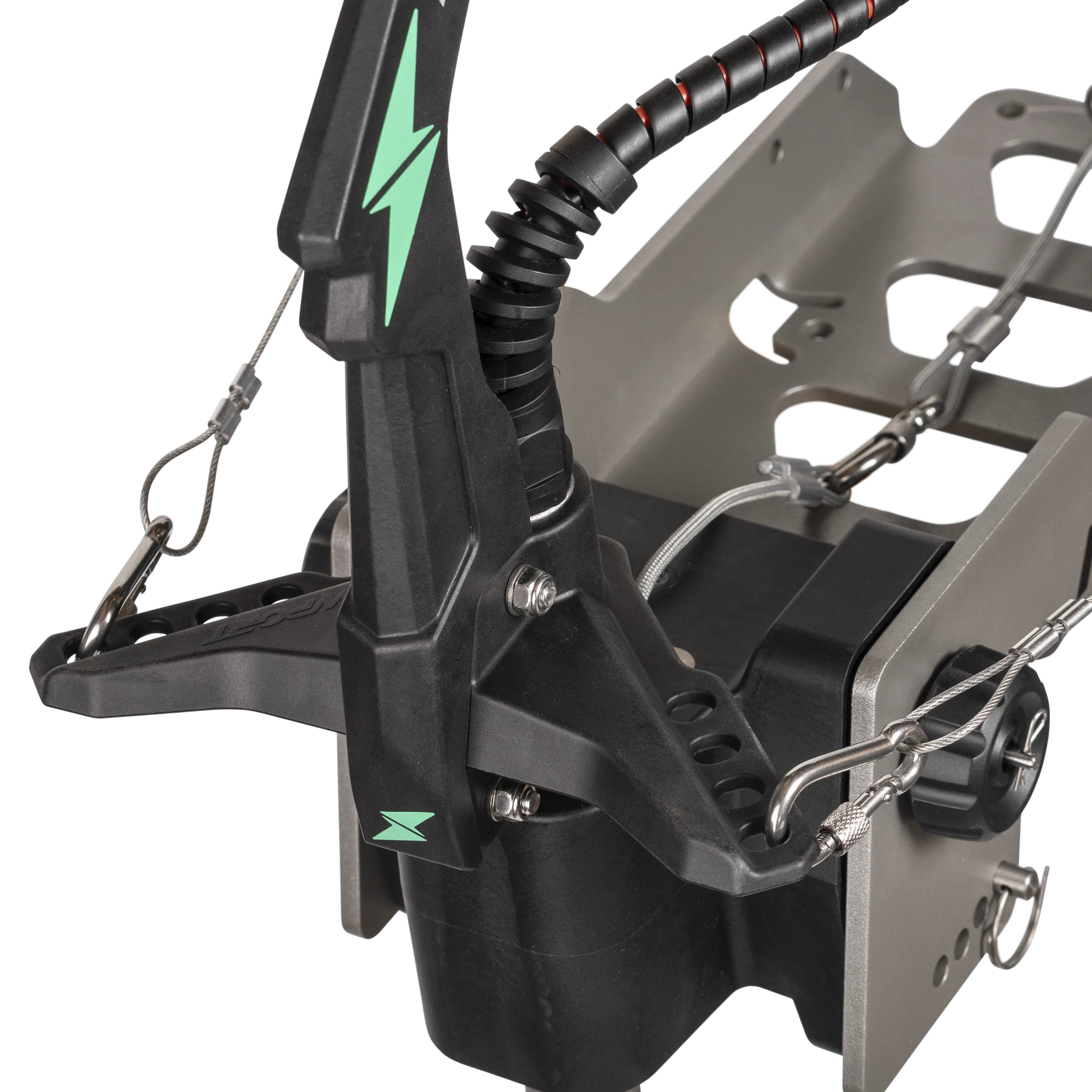

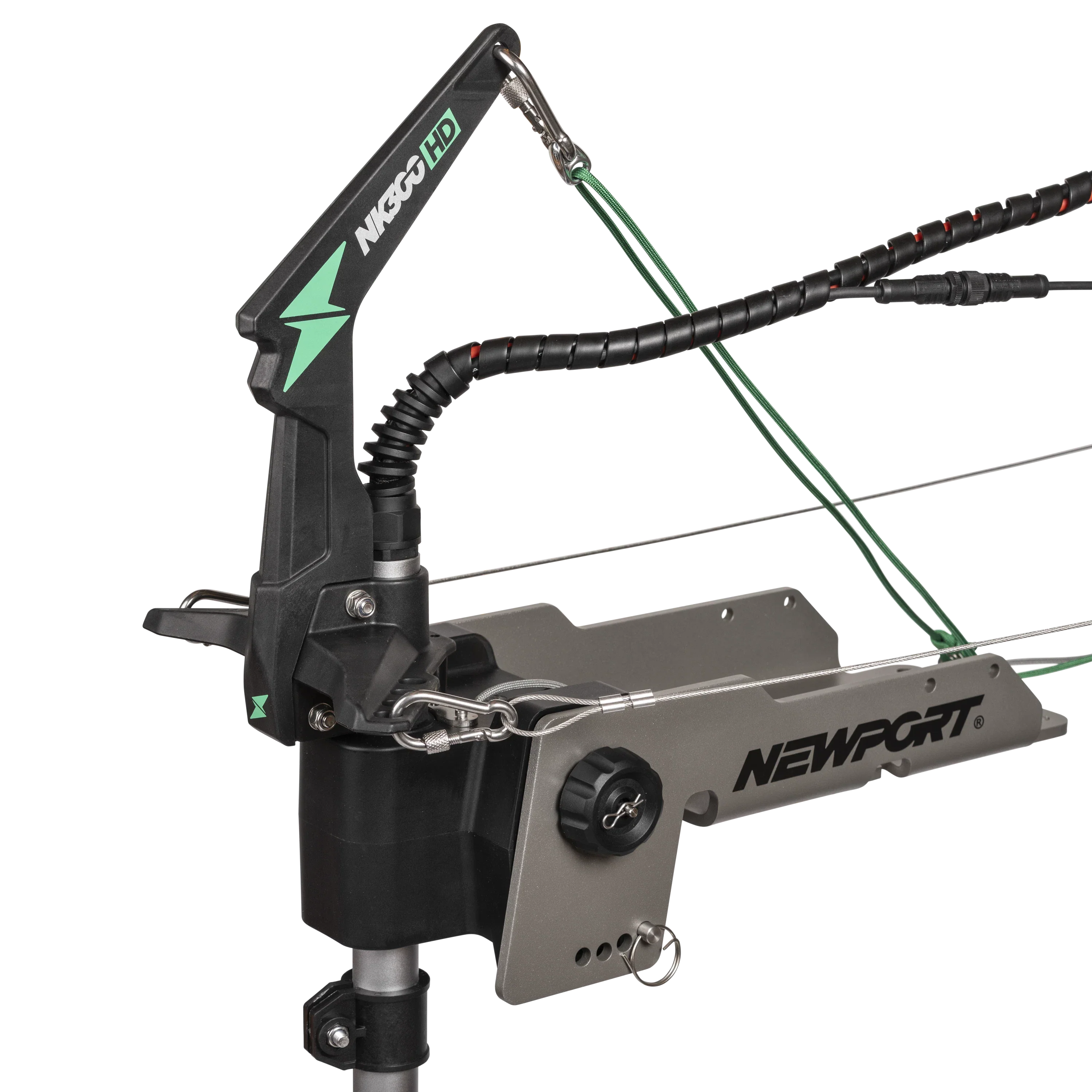

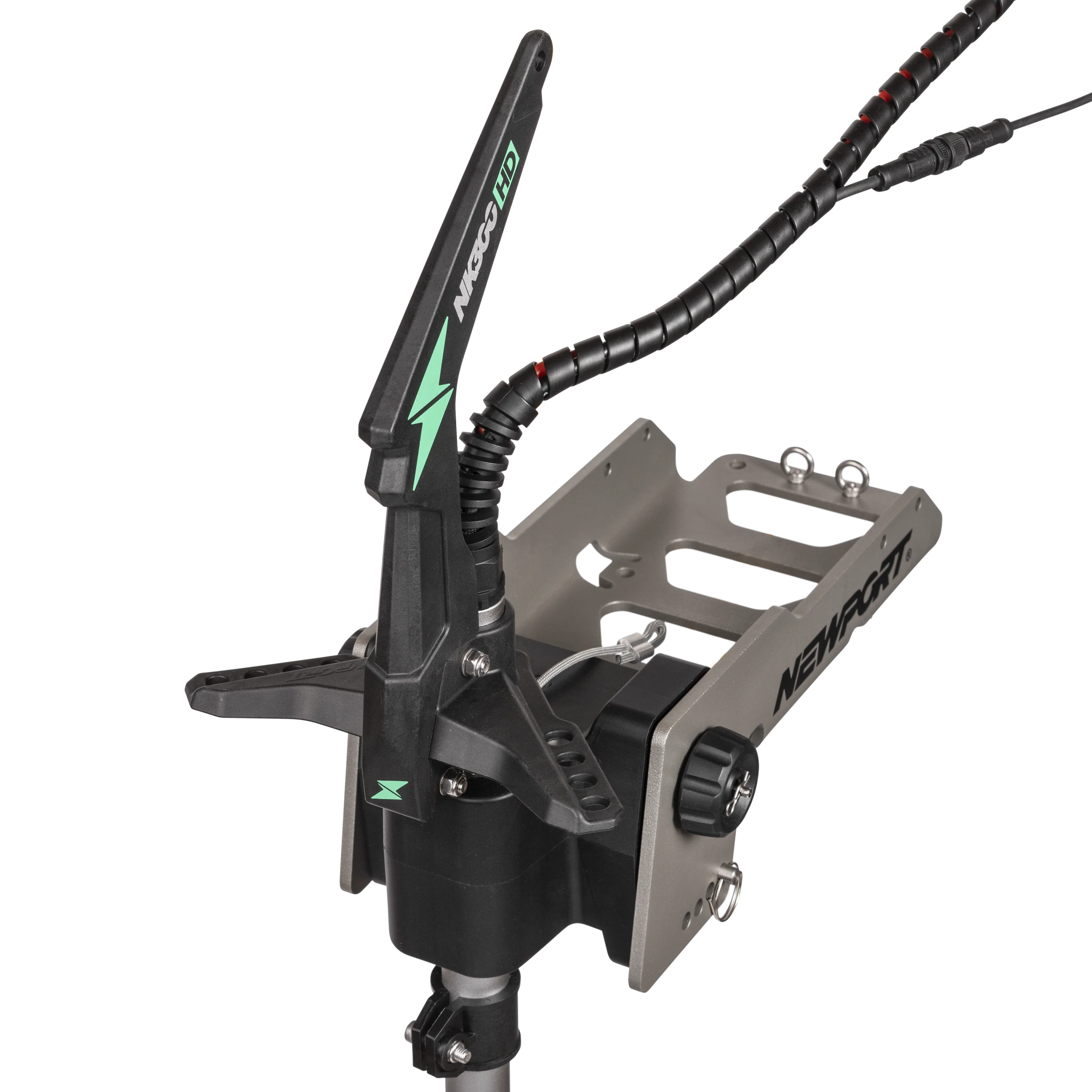

• Reinforced steering/retract system
• HD communication cable connectors
• Brushless direct drive
• Newport battery system compatibility
• Compact anodized Ronstan® block
• Cable strain relief mechanism
• Conformal-coated electronics

What's In The Box?

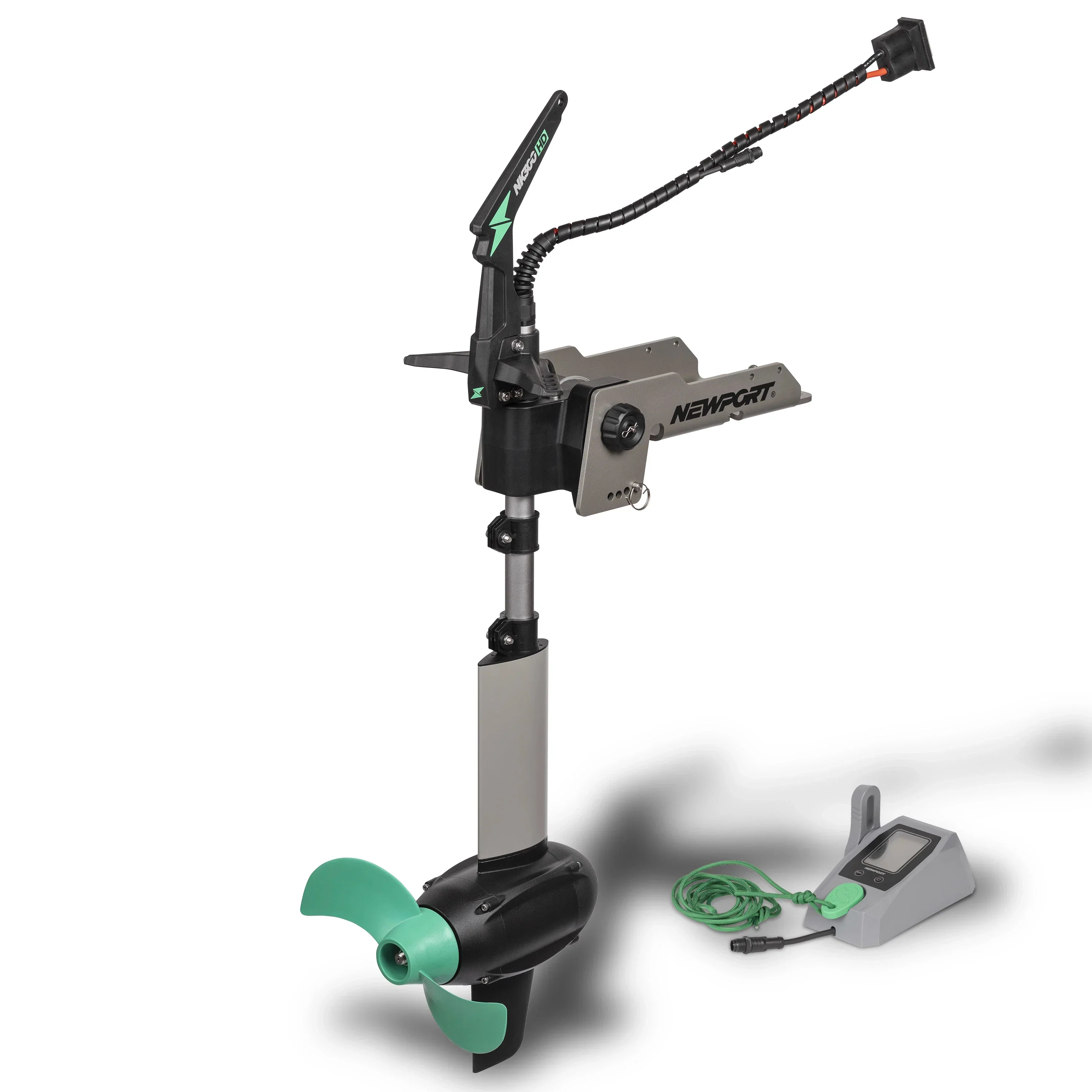

• NK300 HD motor
• NK HD Steering Triangle
• NK HD Retract Arm w/ Stainless Carabiner + Ronstan micro block
• NK HD Communication Cable with oversized M12 connectors
• NK HD Digital Speed Controller w/ Display
• Four Bolt Aluminum Motor Mounting bracket
• Height Adjustment Clamp
• Reverse Control Line and Handle
• Motor Lift Control Line and Handle
• Emergency Stop Key
• (2) Carabiner and pulley sets for rigging options
• Additional nylon cord
• Coated Stainless Steering Cable Kit (may not be compatible w/ every brand of kayak)
  Installation Kit
• Hardware installation kit with required tools
• BATTERY NOT INCLUDED

Specs

Power: 1300W (3 HP Equivalent)
Input Voltage: 36V DC
Amp Draw: 37 amps
Weight: 25.5 lbs
Shaft Length: 21.7"
External Battery: 36V DC 30 Ah minimum

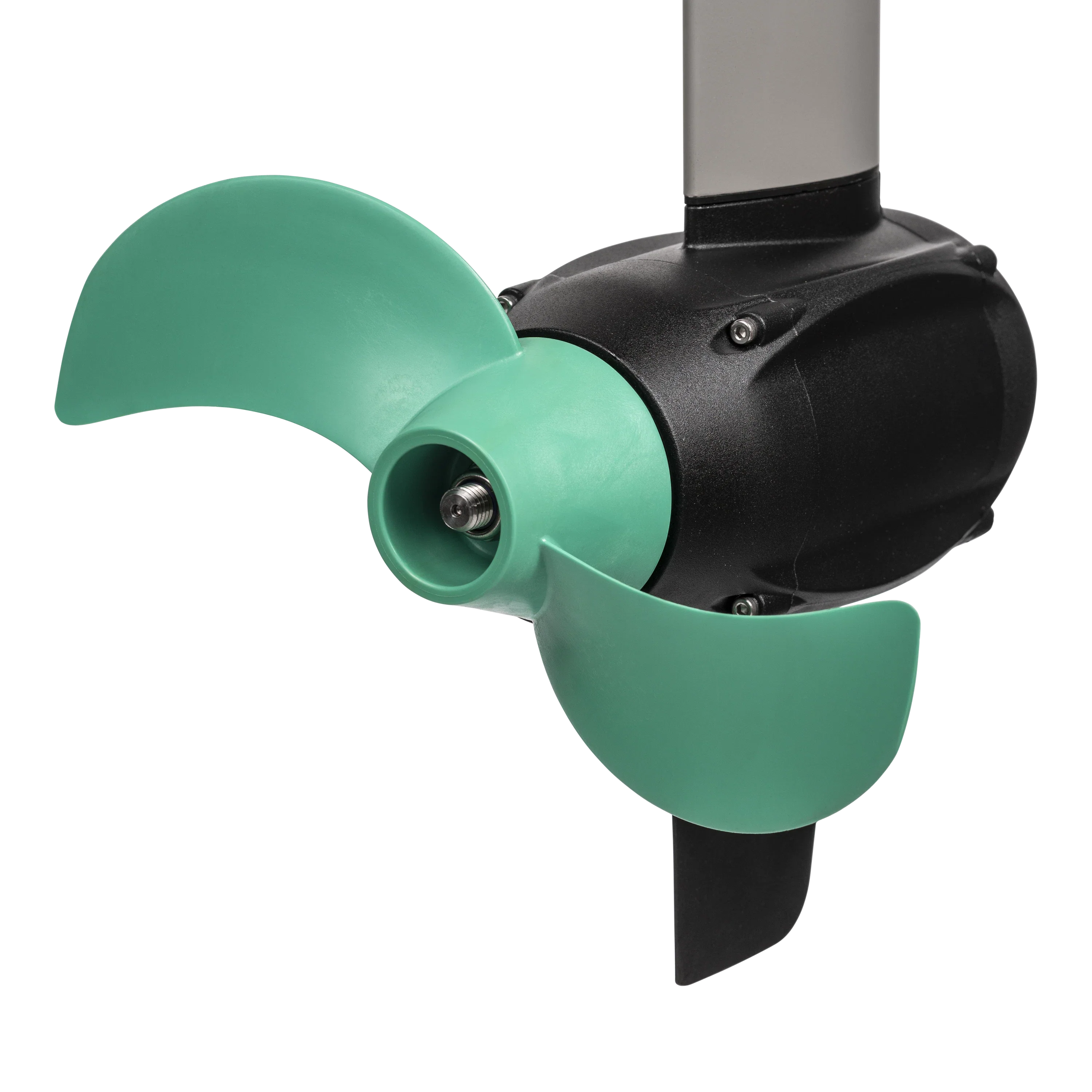

Propeller: 9.8" 2-blade composite
Trim/ Tilt Angle: 0°, 7°, 14°, 21° / 70°
Motor: Brushless DC Motor
Direct Drive: Yes
Maintenance Free: Yes
Lower Motor Length: 9.25"
Diameter Of Lower Motor: 4.5"
